Construction Power Distributor with Safety Adaptor (with 2x32A + 1x16A CEE sockets, 2m oil-resistant cable, for construction site use and permanent outdoor use IP44, Made in Germany)
Описание

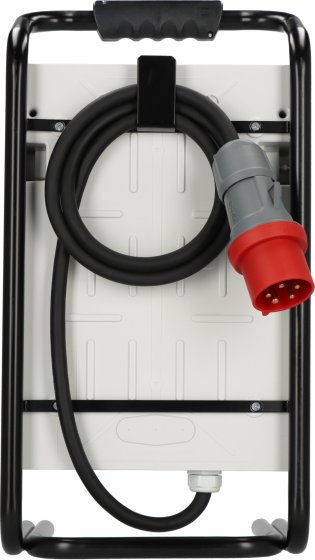

The portable construction power distributor with a 2m oil-resistant cable is ideally suited for use on construction sites or even permanent use outdoors thanks to the IP44 protection rating and its robust cable quality. The portable construction power box with a total of 3 CEE sockets and 4 earthed sockets can be easily transported thanks to its ergonomically shaped carrying handle. The additional 30mA residual current circuit breaker provides even more safety and protects against possible electrical accidents. It disconnects the active conductors from the mains at lightning speed as soon as residual currents occur. The construction power distributor also has a practical winding device at the back for the connection cable. It also impresses with the following features:
- Robust and plastic-coated tubular steel frame
- Protection class: IP44
- Max. electrical load capacity: 22000 W
- Rated input voltage: 400 V
- Max. current Current carrying capacity: 32 A
- With FI personal circuit breaker 30mA / 40A / type A
- Number of circuit breakers: 5
- Number of earthed sockets: 4
- Total number of CEE sockets: 3
- CEE socket - 16 A: 1x 16A 3P+N+PE (5p) 400V
- CEE socket - 32 A: 2x 32A 3P+N+PE (5p) 400V
- Plug system plug: CEE 32A 3P+N+PE (5p) 400V
- Cable designation: H07RN-F 5G4,0
- Cable length: 2m
- Protection class: II
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Технические данные
- Height: 25 cm
- Length: 62 cm
- Weight: 8,25 kg
- Width: 32 cm
- Max. electr. load capacity: 22000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 7
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G4,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Number of earthed socket outlets: 4
Загрузки
All products are subject to technical changes
