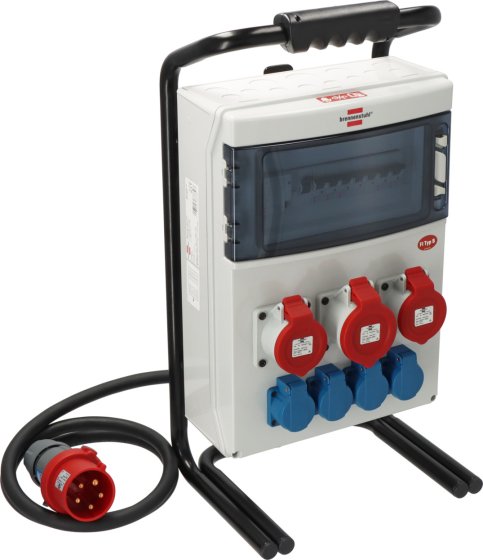

Portable Site Power Distributor with all-current sensitive RCD Type B (32A CEE plug, 2m RN cable, sockets: 1x CEE 400V/32A, 2x CEE 400V/16A, 4x earthed sockets 230V, complies with DIN VDE 0100-704, Made in Germany)
Описание

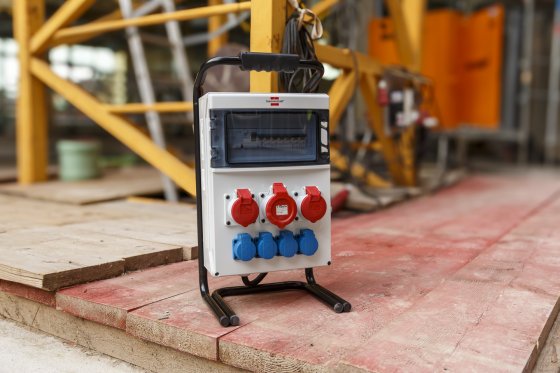

The portable power distributor with 2m oil-resistant RN cable (H07RN-F 5G6.0) serves to increase safety for people and the environment on construction sites thanks to the type B residual current device. This RCD is based on the VDE 0100-704:2018-10 standard and will ensure even more safety on construction sites in the future. The type B residual current device is required because smooth or nearly smooth DC residual currents occur that are not detected by a type A residual current device. Comprehensive personal and system protection is therefore only guaranteed with an all-current sensitive residual current device type B. The practical and extremely robust current distributor with protective covers for fuses also convinces with the following features:

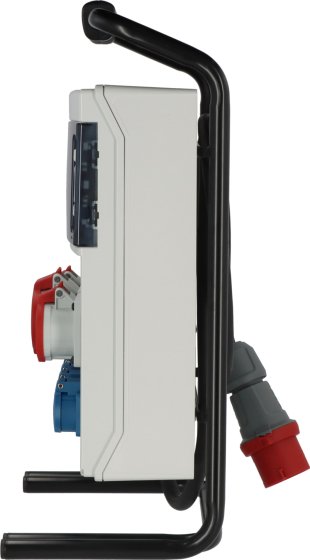

- Robust and plastic-coated tubular steel frame
- Ergonomically shaped carrying handle for comfortable transport

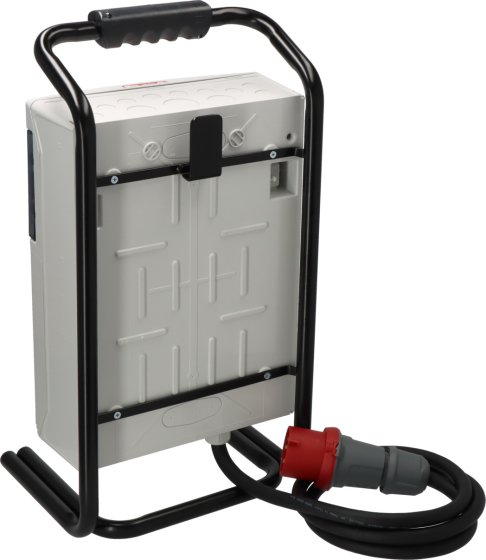

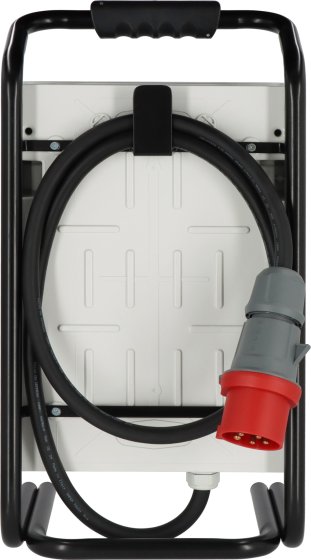

- Practical rewinding device for the connection cable on the rear side
- Oil-resistant rubber cable for permanent outdoor use
- Cable designation: H07RN-F 5G6.0
- Cable length: 2m
- Protection class: IP44
- Number of poles (FI): 4
- With RCD (type B all-current sensitive) - personal protection switch 30 mA for more safety
- Number of circuit breakers: 5 (1x LS 400V/16A 3-pole/-pin; 4x LS 230V/16A 1-pole/-pin)
- Plug: CEE 32A 3P+N+PE (5p) 400V
- CEE socket - 16 A: CEE 2x 16A 3P+N+PE (5p) 400V
- CEE socket outlet - 32 A: CEE 1x 32A 3P+N+PE (5p) 400V
- Earthed sockets: 4
A residual current circuit breaker (RCD) is an electrical protective device used primarily to protect against electric shocks. The RCD detects the difference between the incoming and outgoing current in a circuit. If a fault current occurs, for example due to an insulation fault or a current flow via an unwanted discharge such as a person, the RCD switches off the circuit. This significantly reduces the risk of electric shock or fire caused by a fault current. When used as personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
Технические данные
- Height: 25 cm
- Length: 62 cm
- Weight: 8,37 kg
- Width: 32 cm
- Max. electr. load capacity: 22000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 7
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G6,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Number of earthed socket outlets: 4
Загрузки
All products are subject to technical changes
