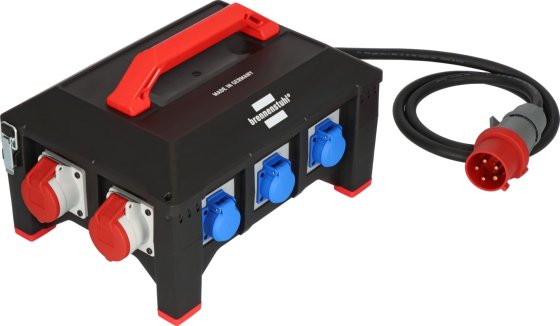

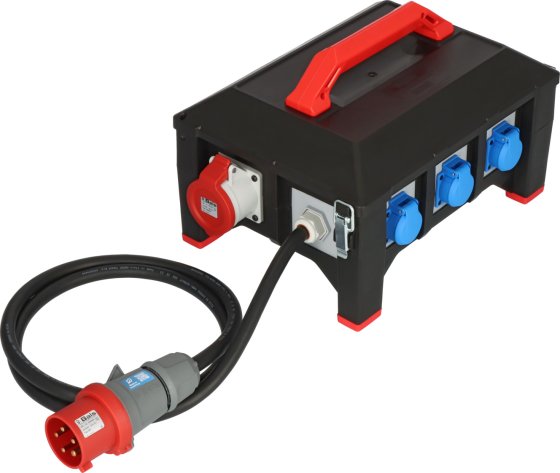

Professional Rubber Construction Power Distributor BSV 5-32A with all-current sensitive RCD type B (Power Distributor with 32A CEE plug, 2m RN cable, 1x CEE 400V/32A, 2x CEE 400V/16A, 6x protective contact 230V, complies with DIN VDE 0100-704, Made in Germany)
Описание
The Professional Rubber Power Distributor with 2m oil-resistant RN cable (H07RN-F 5G6.0) is used to increase safety for people and the environment on construction sites thanks to the type B residual current device. This RCD is based on the VDE 0100-704:2018-10 standard and will ensure even greater safety on construction sites in future. The type B residual current device is required because smooth or almost smooth DC residual currents occur that are not recognised by a type A residual current circuit breaker. Comprehensive personal and system protection is therefore only guaranteed with a type B residual current device that is sensitive to all currents (complies with the new DIN VDE 0100-704 standard). The extremely robust site power distribution board with self-closing cover with practical quick-release fastener and robust hinges is resistant to various oils, greases, petrol and acids, UV and ozone radiation and also impresses with the following features:
- With RCD type B (all-current sensitive) circuit breaker 30mA
- Maximum operational safety by connecting each individual 230V socket outlet with earthing contact to a MCB switch
- Connected load from 11 to 22 kVA
- Operation of several consumers at one three-phase/power current connection point with plug-in systems in accordance with IEC 60309
- Eligible for members of BG Bau
- Cable designation: H07RN-F 5G6.0
- Protection class: IP44
- Rated current (RCD): 40A
- Number of poles (RCD): 4

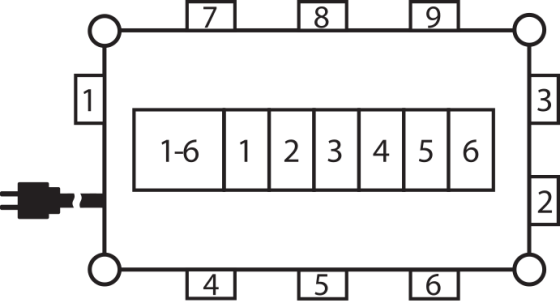

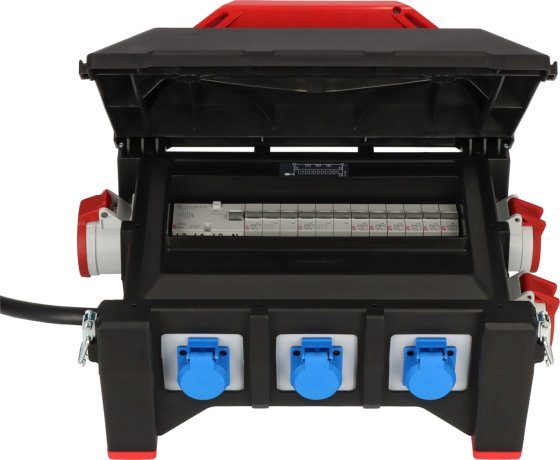

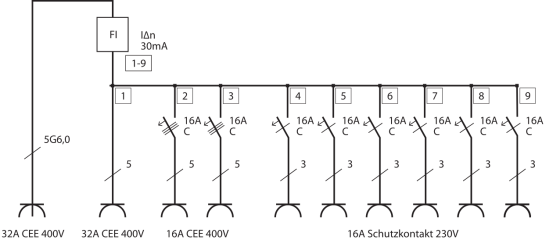

- Number of circuit breakers: 6 (2x MCB 400V/16A 3-pole/pin; 6x MCB 230V/16A 1-pole/pin)
- Plug connector system: CEE 32A 3P+N+PE (5p) 400V
- CEE socket outlet - 16A: CEE 2x 16A 3P+N+PE (5p) 400V
- CEE socket outlet - 32A: CEE 1x 32A 3P+N+PE (5p) 400V
- Sockets with earthing contact: 6
- RCD: RCD with IFN 0.03 A (standard)
- For construction site use in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Технические данные
- Height: 30 cm
- Length: 31 cm
- Weight: 7,56 kg
- Width: 53 cm
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 9
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G6,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Number of earthed socket outlets: 6
Scope of delivery

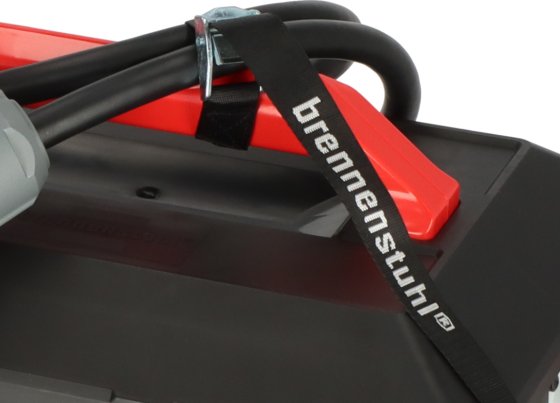

Professional Rubber construction site power distributor BSV 5-32A FI type B, fixing strap
