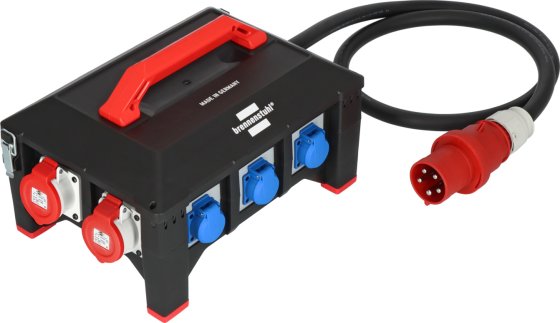

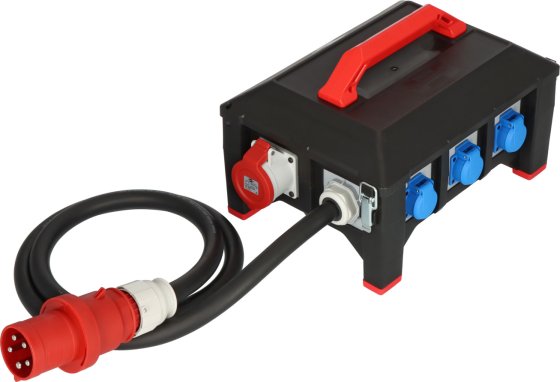

Professional Rubber Construction Power Distributor BSV 5-63A with all-current sensitive RCD type B (Power Distributor with 63A CEE plug, 2m RN cable, sockets: 1xCEE 400V/32A, 2xCEE 400V/16A, 6x protective contact 230V, complies with DIN VDE 0100-704, Made in Germany)

Описание

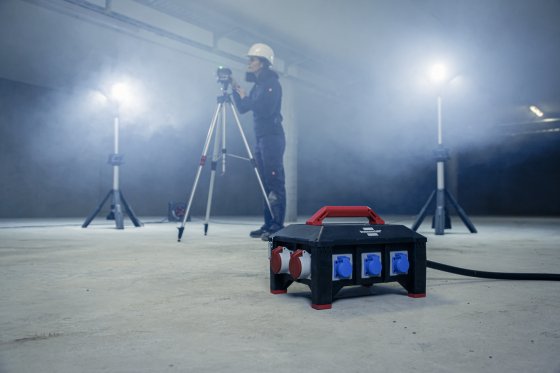

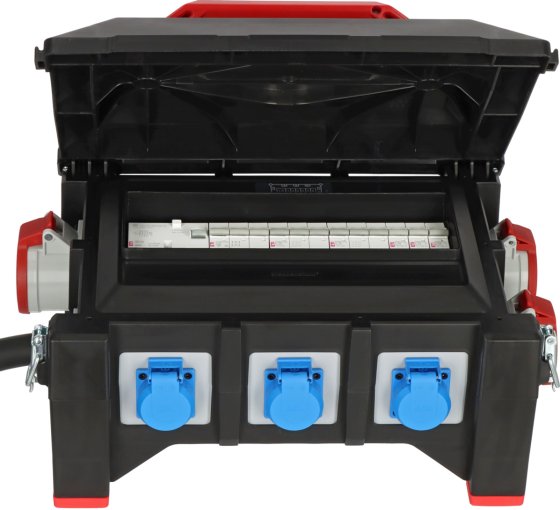

The Professional Rubber Power Distributor with 2m oil-resistant RN cable (H07RN-F 5G16,0) is used to increase safety for people and the environment on construction sites thanks to the type B residual current device. This RCD is based on the VDE 0100-704:2018-10 standard and will ensure even greater safety on construction sites in future. The type B residual current device is required because smooth or almost smooth DC residual currents occur that are not recognised by a type A residual current circuit breaker. Comprehensive personal and system protection is therefore only guaranteed with a type B residual current device that is sensitive to all currents (complies with the new DIN VDE 0100-704 standard). The extremely robust site power distribution board with self-closing cover with practical quick-release fastener and robust hinges is resistant to various oils, greases, petrol and acids, UV and ozone radiation and also impresses with the following features:

• With RCD type B (all-current sensitive) circuit breaker 30mA
• With the RCDs and MCBs, the power distribution board offers a high level of operational safety
• Connected load from 11 to 44 kVA
• Operation of several consumers at one three-phase/power current connection point with plug-in systems in accordance with IEC 60309
• Eligible for members of BG Bau
• Cable designation: H07RN-F 5G16,0
• Protection class: IP44
• Rated current (RCD): 63A
• Number of poles (RCD): 4

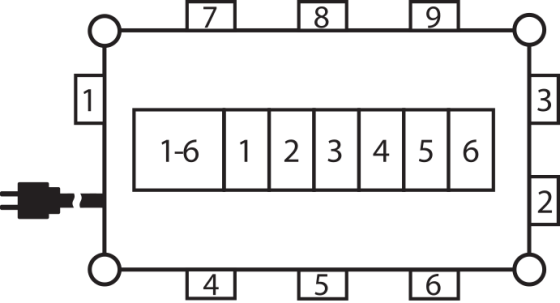

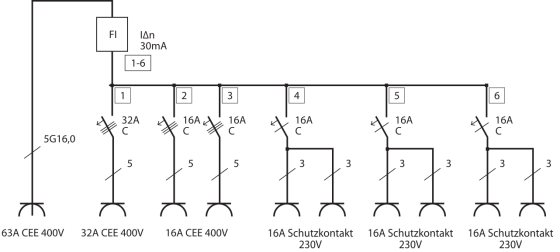

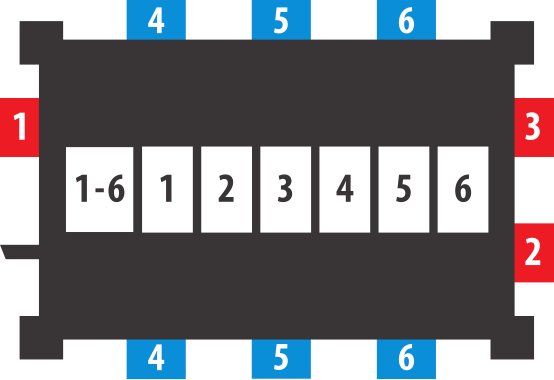

• Number of miniature circuit breakers: 6 (1x MCB 400V/32A 3-pole/pin; 2x MCB 400V/16A 3-pole/pin; 3x MCB 230V/16A 1-pole/pin)
• Plug connector system: CEE 63A 3P+N+PE (5p) 400V

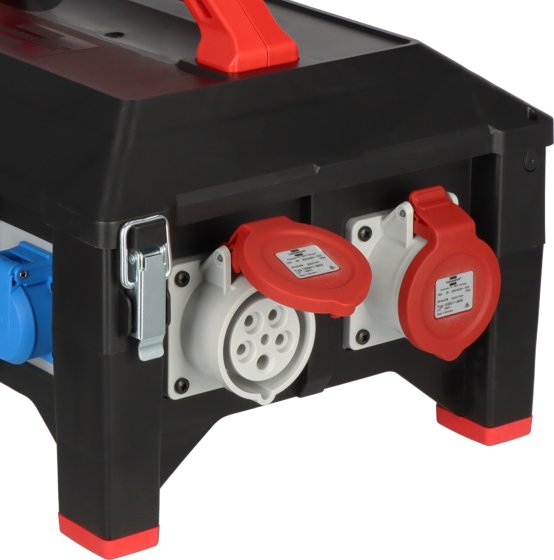

• CEE socket outlet - 16A: CEE 2x 16A 3P+N+PE (5p) 400V
• CEE socket outlet - 32A: CEE 1x 32A 3P+N+PE (5p) 400V

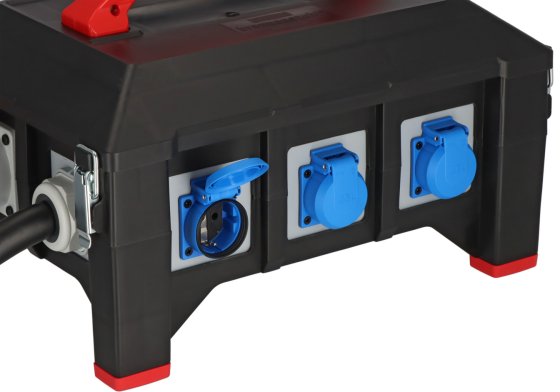

• Sockets with earthing contact: 6
• RCD: RCD with IFN 0.03 A (standard)

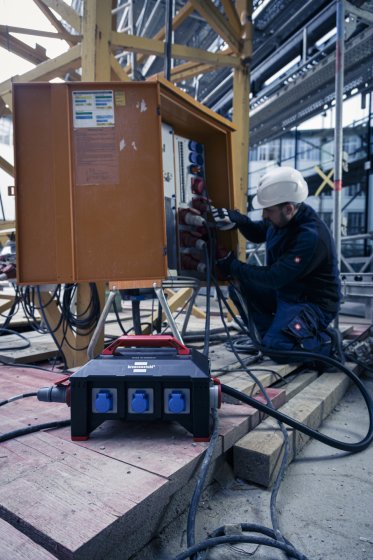

• For construction site use in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
• Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
