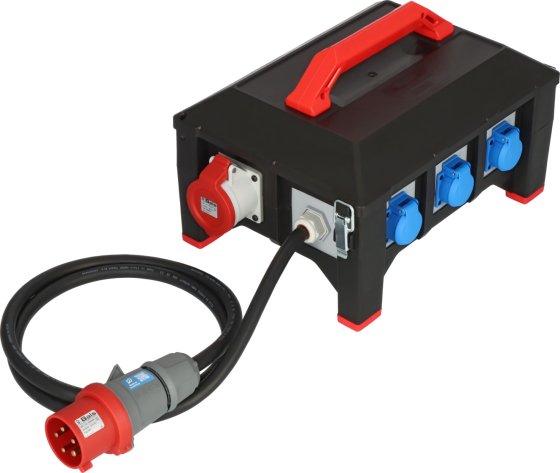

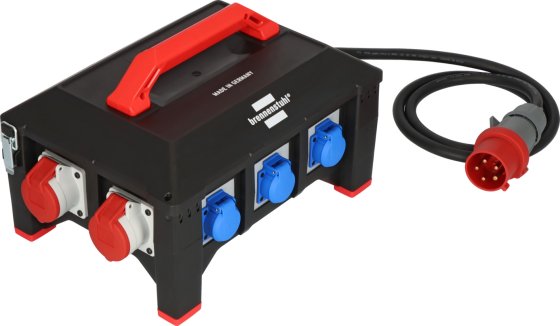

Professional Rubber Power Distributor BSV 5 / Power Distributor with 2m cable H07RN-F 5G6.0 and 32A CEE plug (1xCEE 400V/32A, 2xCEE 400V/16A, 6x earthing contact 230V, for tough and permanent outdoor use, Made in Germany)
Описание
The Professional Rubber Power Distributor with 2m cable is ideal for harsh and constant outdoor use. The mobile Power Distributor with splash-proof housing is temperature-resistant from -30°C to + 80°C and is also resistant to various oils, greases, petrol and acids. The Power Distributor also has the following properties:
- Cable designation: H07RN-F 5G6.0
- Plug: CEE 400V/32A 5-pole/-pin

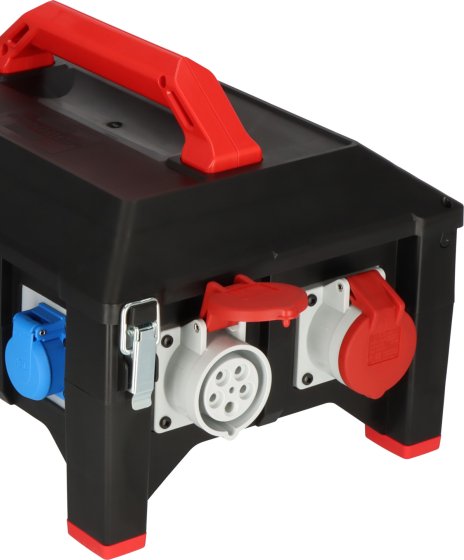

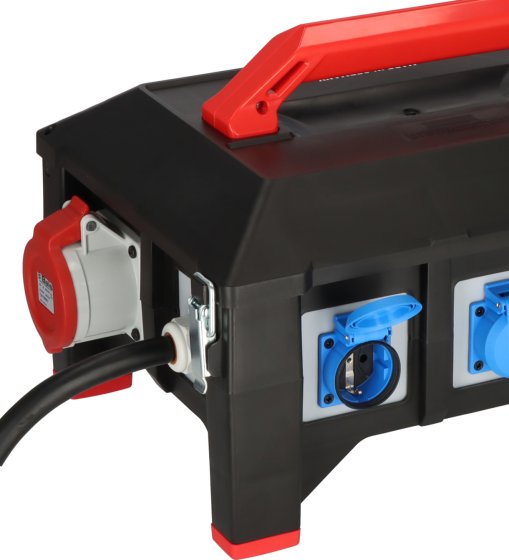

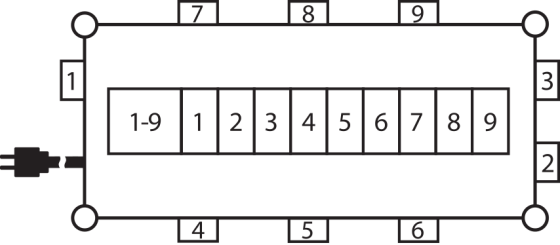

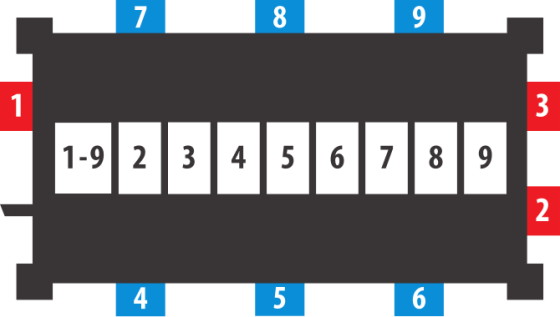

- Sockets: 1xCEE 400V/32A 5-pole/-pin, 2xCEE 400V/16A 5-pole/-pin (individually fused), 6x protective contact 230V (individually fused)

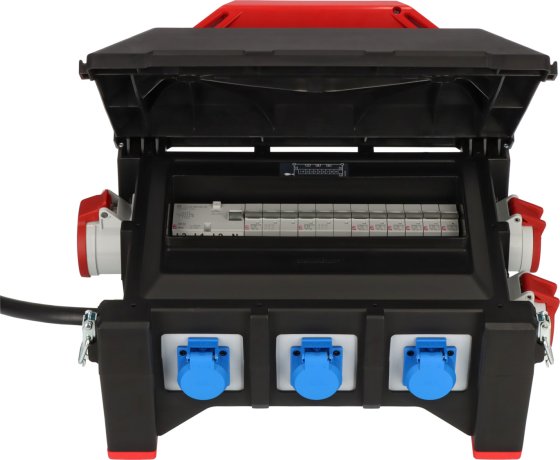

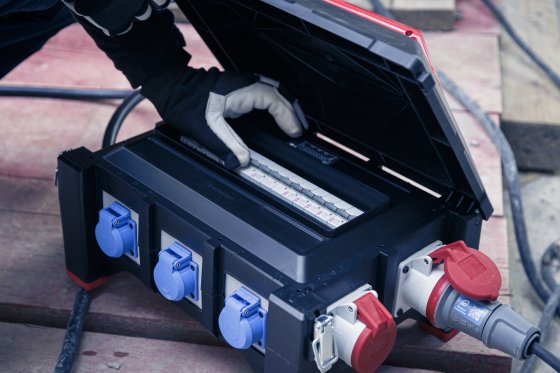

- Fuse elements (RCD and MCB) safely protected under the hinged cover

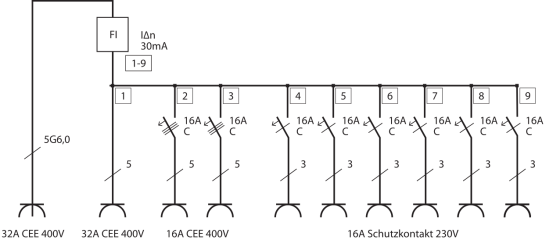

- Fuse protection: 2x MCB 400V/16A 3-pole/pin, 6x MCB 230V/16A 1-pole/pin, 1x RCD 40A 4-pole/pin, 30mA
Технические данные
- Height: 30 cm
- Length: 31 cm
- Weight: 7,71 kg
- Width: 53 cm
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 9
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Cable designation: H07RN-F 5G6,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Number of earthed socket outlets: 6
Scope of delivery

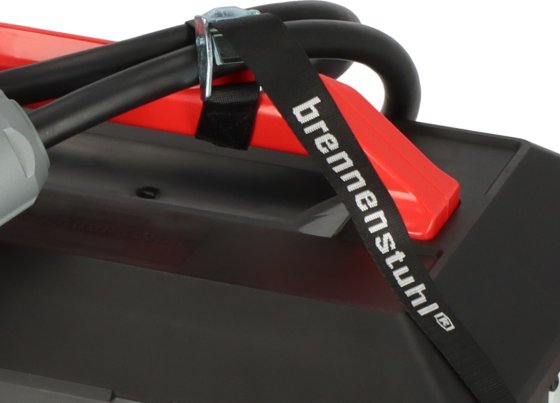

Professional Rubber current distributor BSV 5, fixing strap
Загрузки
All products are subject to technical changes
