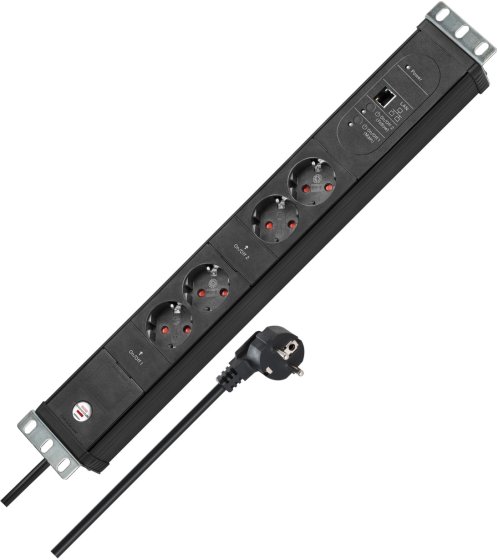

Premium Web-Line V3 Internet extension lead (4-way Extension Lead in 19" with main-follow function, LAN connection, 3m cable, Made in Germany)
Описание
Описание
The Premium-Web-Line V3 4er multiple power strip with 3m cable serves as a professional Internet power strip for worldwide control, measurement and monitoring of electrical devices via Ethernet (LAN). The 19" multiple power strip with automatic time synchronisation (NTP) and summer/winter time changeover has a programmable automatic function thanks to 2 Main (on/off) and 2 Follow (on/off) sockets. The power strip also convinces with the following features:
- Integrated web server for operating system-independent operation with web browser (PC, notebook, tablet, smartphone)
- Access protection by means of user name and password
- 2 independently switchable circuits with 16A load capacity
- Device-friendly switching optimised for high inrush currents thanks to intelligent control electronics
- Switching status change and display individually possible directly on the unit
- Adjustable default switching state: off, on, last state
- Integrated time control by means of flexibly programmable, time-dependent rules: Channel 1 and/or 2, switch on or off, any day of the week or exact date, exact time to the minute
- Professional power measurement at channel On/Off 1 (Main): Measurement of active power and energy consumption with history display
- IP address via DHCP (default) or static IP address possible
- Monitoring of connected LAN devices (watchdog) with automatic shutdown or reboot function
- Wake-On-Lan (WOL)
- Permanent backup of configuration settings in flash memory
- SW update in the browser without interrupting the switching outputs
- Save and load configurations on the PC
- Multi-user system with limited access authorisation
- Very low power consumption of < 0.9W (sleep mode, relays switched off)
- Supported protocols HTTP, DHCP, UPNP, SNMP, TFTP, SMTP, SYSLOG
- Cable designation: H05VV-F 3G1.5
Технические данные
Технические данные
- Cable designation: H05VV-F 3G1,5
- Cable length: 3 m
- Height: 49 cm
- Length: 7 cm
- Weight: 1 kg
- Width: 10 cm
- Colour: black
- Usage: Household
- Type of fastening: Fastening with screw
- With surge protection: No
- Max. electr. load capacity: 3500 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- Type of plug: Angle plug
- Number of socket outlets total: 4
- Socket outlet arrangement: 45°
- USB type output socket: Not applicable
- Degree of protection (IP): IP20
- Suitable for outdoor area: No
- Cable quality: PVC, PVC
- Suitable for 19 inch rack mounting: Yes
- Suitable for built-in mounting: Yes
- With hand/ foot switch: No
- With wireless control: No
- Main Follow function: Yes
Scope of delivery
Scope of delivery
Premium-Web-Line V3 Internet Extension Lead 19"
