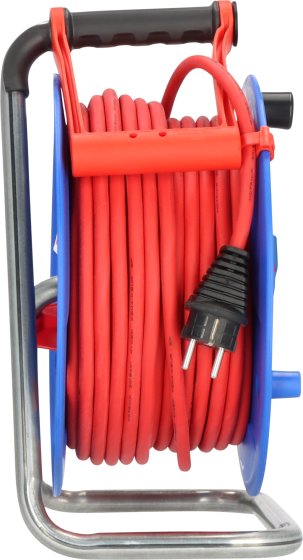

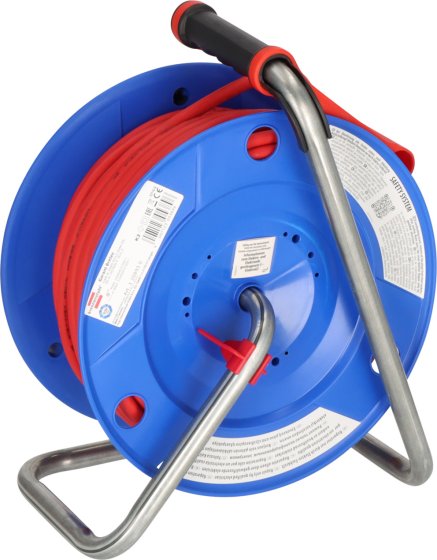

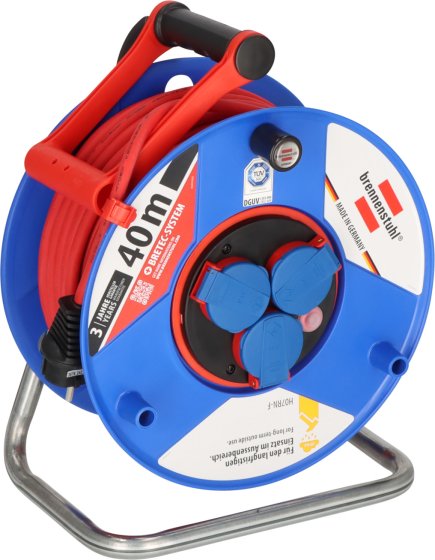

Garant Bretec IP44 commercial/construction site Cable Reel 40m (made of special plastic, for construction site use and permanent outdoor use, Made in Germany)
Описание
The Garant Bretec IP44 commercial/building site Cable Reel with 40m cable length convinces with its quality and safety in all areas. Ideally suited for construction site use and outdoor use. The Bretec® rotary contact system allows the cable drum to be rolled up or unrolled without connected cables twisting. It also convinces with the following features:
- With twist handle for comfortable reeling
- RN cable is approved for difficult construction conditions according to VDE 0100 part 704
- Innovative carrying handle "cablepilot" for perfect cable guidance. Swings on both sides for convenient carrying and hanging
- Protection class: IP44
- Cable length: 40m
- Cable designation: H07RN-F 3G1.5
- Cable quality: Rubber neoprene
- Cable colour: Red
- Reel diameter: 290mm

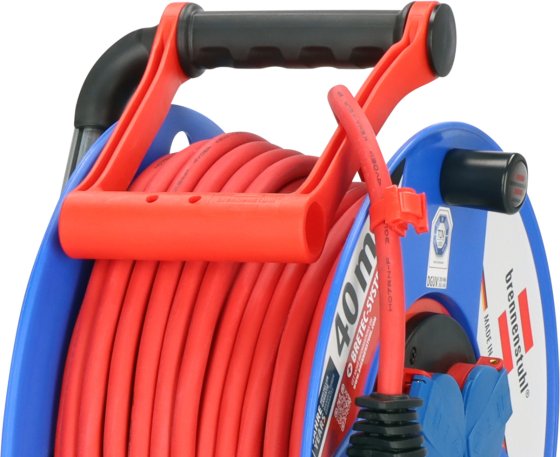

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.

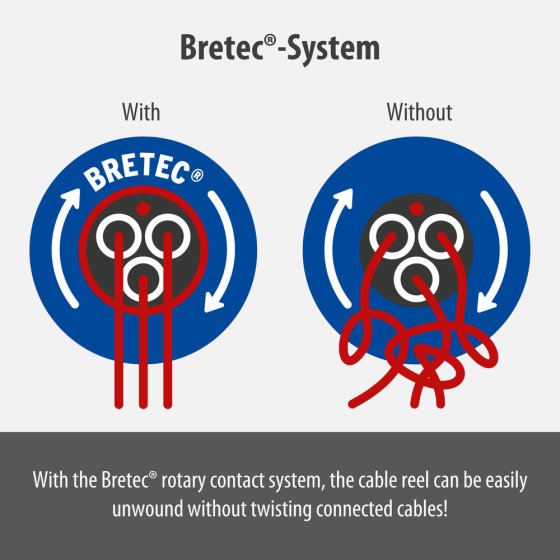

Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert. This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted.
Технические данные
- Cable designation: H07RN-F 3G1,5
- Cable length: 40 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3100 W
- With residual current circuit breaker (RCCB): No
- With Bretec: Yes
- Automatic cable winding: No
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes

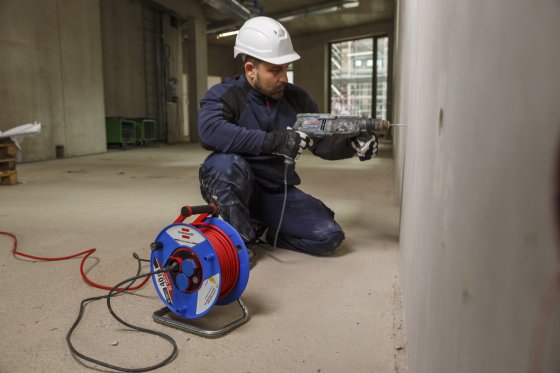

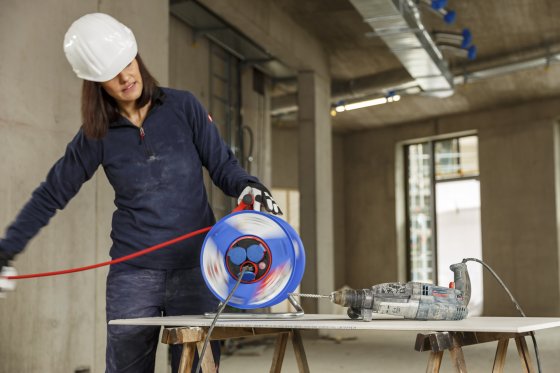

- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets:

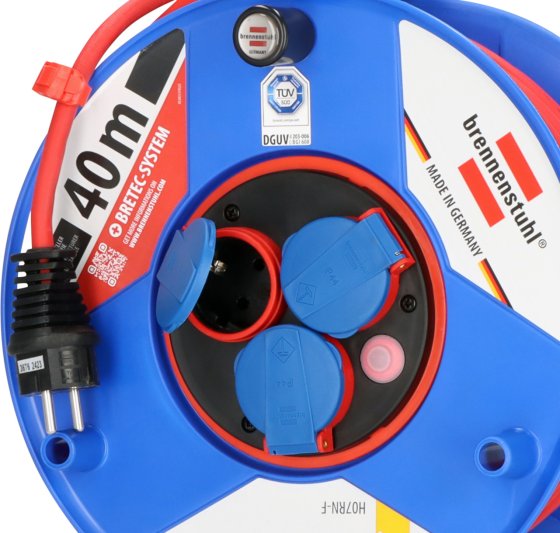

- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 19 cm
- Weight: 6,80 kg
- Width: 29 cm
Загрузки
Принадлежности
All products are subject to technical changes
