Garant CEE 1 IP44 cable reel (25m cable in signal red, made of special plastic, for outdoor use, Made in Germany)

Номер артикула 1182770010

Европейский товарный код 4007123687442

25m cable length (AT-N07V3V3-F 5G1.5) with Bremaxx cable - extremely stable, can be used down to -35 °C, oil and UV-resistant and also extremely abrasion-resistant
CEE cable reel with 3-pole safety cut-out, protective contact sockets distributed on separate phases

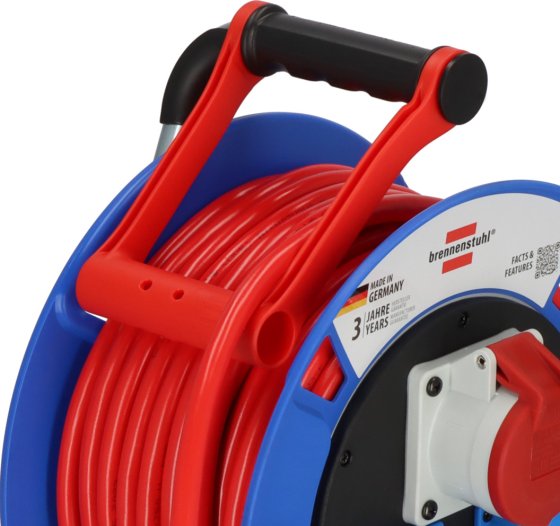

Cable reel with a reel body made of special plastic on a galvanised carrying frame and innovative ‘cablepilot’ carrying handle, which allows free hands during transport, practical hanging and quick unwinding and rewinding

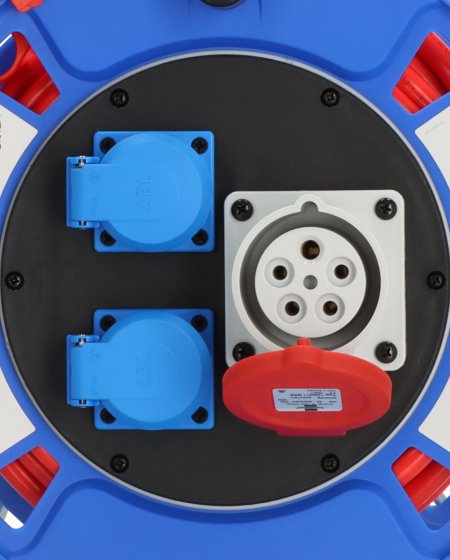

Cable reel with CEE plug 400V/16A, 1 CEE socket outlet 400V/16A, 2 splash-proof protective contact socket outlets 230V
Outdoor cable reel with overheating protection and practical reel brake that prevents the cable from unwinding during transport

Номер артикула 1182770010

Европейский товарный код 4007123687442

Описание

The Garant CEE 1 IP44 cable reel with a cable length of 25m is ideal for outdoor use. A special highlight is the innovative ’cablepilot‘ carrying handle, which ensures perfect cable routing. The handle swings on both sides, making it easy to carry and hang up the reel. The reel is also equipped with a practical reel brake that prevents the cable from unwinding during transport. It also impresses with the following features:

With Bremaxx cable: extremely stable, can be used down to -35 °C, oil and UV-resistant and also extremely abrasion-resistant
Sockets with earthing contact distributed on separate phases
With twist handle for convenient retraction
Protection class: IP44
Cable length: 25m
Cable designation: AT-N07V3V3-F 5G1.5
Cable colour: red
Reel diameter: 300mm

Технические данные

Cable designation: AT-N07V3V3-F 5G1,5
Cable length: 25 m
Cable quality: BREMAXX, BREMAXX
Capacity in coiled state 230V: 1000 W
Capacity in uncoiled state 230V: 3000 W
With residual current circuit breaker (RCCB): No
With Bretec: No
Automatic cable winding: No
Reel diameter: 300 mm
With CABLEPILOT: Yes
With carrying handle: Yes
Usage: Outdoor
Housing material: Plastic
With plug storage: Yes
Number of CEE socket outlets: 1
Number of earthed socket outlets: 2
Degree of protection (IP): IP44
Area of use: Outdoor
Height: 39 cm
Length: 22,50 cm
Weight: 6,60 kg
Width: 30 cm
Capacity in coiled state 400V 16A: 2400 W
Capacity in uncoiled state 400V 16A: 8000 W

Scope of delivery

Garant CEE 1 IP44 cable reel
