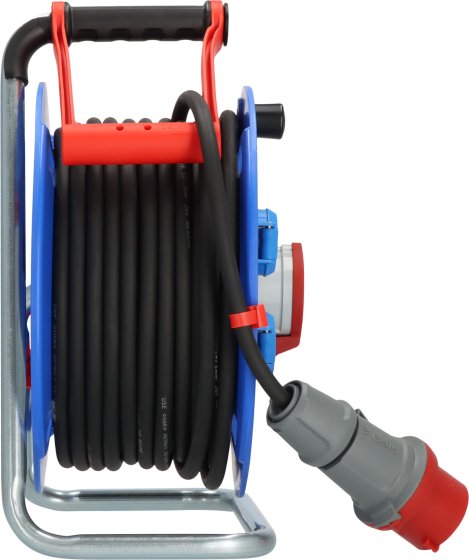

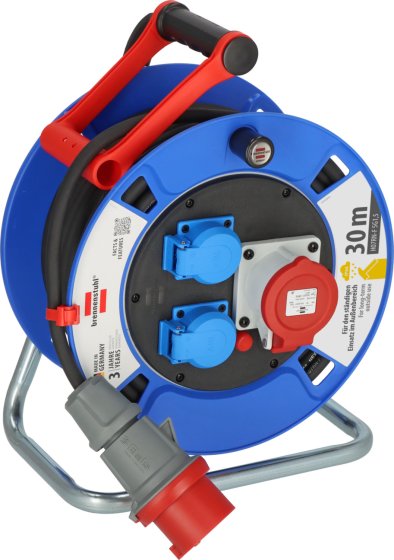

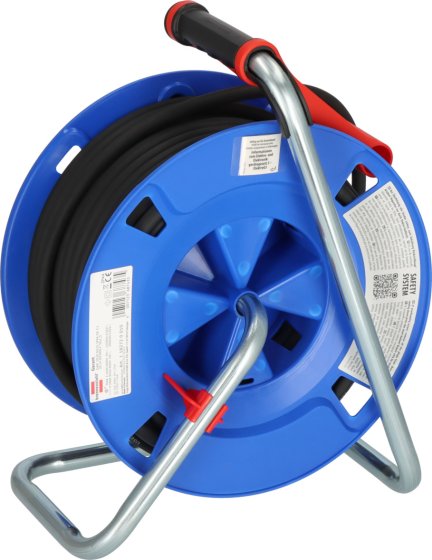

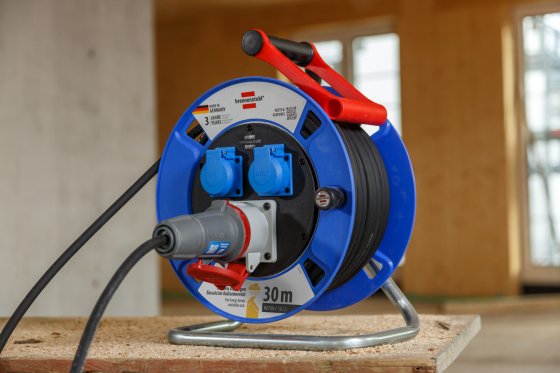

Garant CEE 1 IP44 cable reel (CEE cable reel with 30m cable in black, made of special plastic, for permanent outdoor use, Made in Germany)
Описание
The Garant CEE 1 IP44 cable reel with a cable length of 30m is ideal for permanent outdoor use. A special highlight is the innovative ’cablepilot’ carrying handle, which ensures perfect cable routing. The handle swings on both sides, making it easy to carry and hang up the reel. The reel is also equipped with a practical reel brake that prevents the cable from unwinding during transport. It also impresses with the following features:
- With twist handle for convenient reeling
- RN cable is very robust and oil-resistant
- Sockets with earthing contact distributed over separate phases
- IP44 protection rating
- Cable designation H07RN-F 5G1.5
- Cable quality rubber-neoprene
- Cable length 30m
- Cable colour black
- Cable reel diameter 300mm

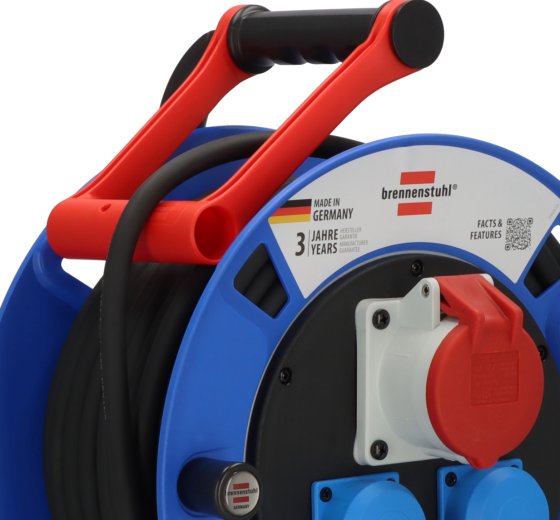

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Технические данные
- Cable designation: H07RN-F 5G1,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1200 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 300 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Outdoor
- Housing material: Plastic
- With plug storage: No

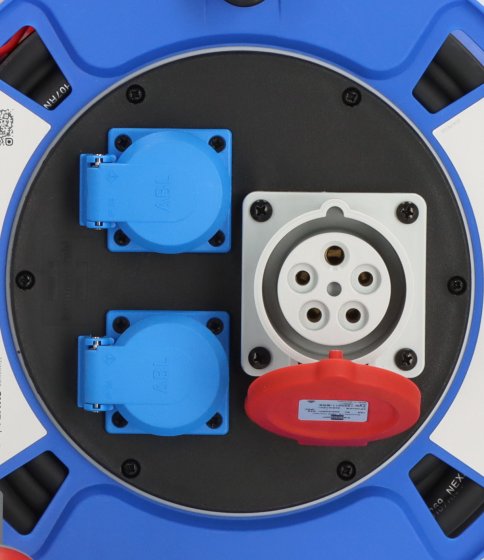

- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 39 cm
- Length: 19,50 cm
- Weight: 7,84 kg
- Width: 30 cm
- Capacity in coiled state 400V 16A: 2400 W
- Capacity in uncoiled state 400V 16A: 8000 W
Scope of delivery
Garant CEE 1 IP44 cable reel
