Garant CEE 1 IP44 industrial/construction site cable reel for construction site use and permanent outdoor use (30m cable in black, special plastic, DGUV 203-006, Made in Germany)
Описание
Описание
The Garant CEE 1 IP44 industrial/construction site cable reel with 30m cable length in the colour blue impresses with its quality and safety in all areas. It is ideal for use on construction sites and outdoors. It impresses with its twist handle for easy reeling and the following features:
- Innovative ‘cablepilot’ carrying handle for perfect cable routing. Swings on both sides and makes it easy to carry and hang up
- Complies with EN 61316
- Complies with DGUV 203-006
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- Protection class IP44
- In accordance with EN 61316

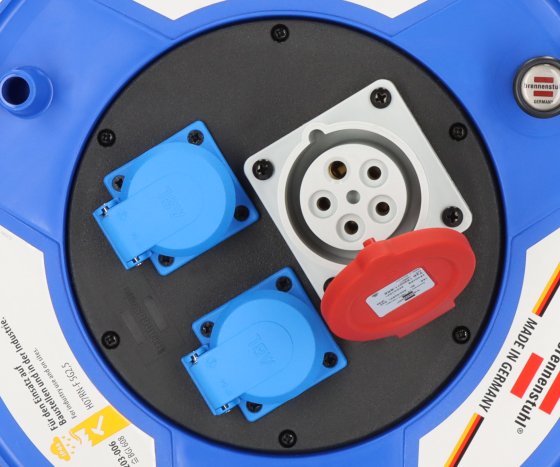

- Earth contact sockets distributed on separate phases
- Cable length 30m
- Cable designation H07RN-F 5G2.5
- Cable quality rubber-neoprene
- Cable colour black
- Reel diameter 320mm
Cablepilot

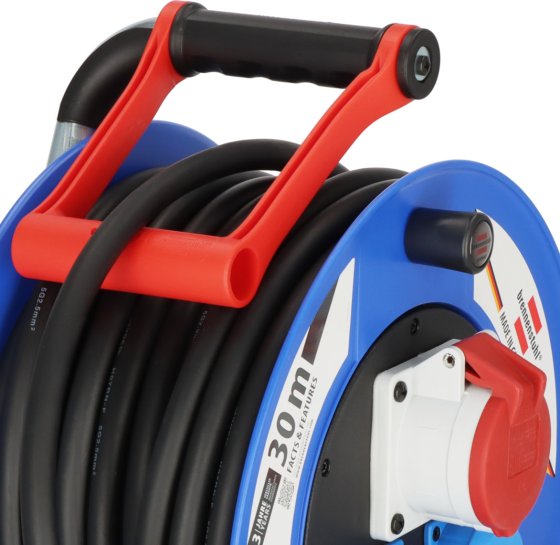

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Технические данные
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Industry/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 42 cm
- Length: 32 cm
- Weight: 11,08 kg
- Width: 25 cm
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Загрузки
Загрузки
All products are subject to technical changes
