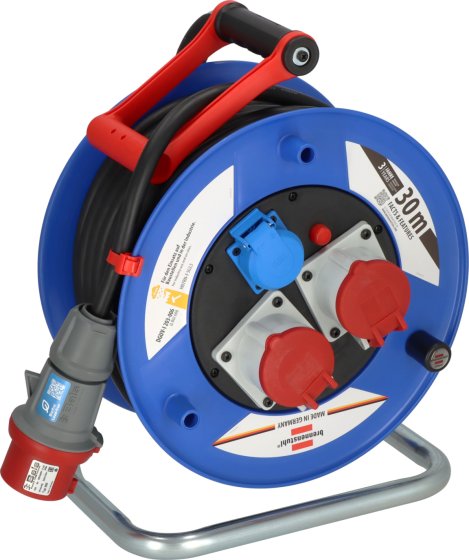

Garant CEE IP44 industrial/construction site cable reel (30m cable in black, special plastic, construction site use and permanent outdoor use, Made in Germany)
Описание
The Garant CEE IP44 industrial/construction site cable reel with a cable length of 30m is ideal for use on construction sites and outdoors. A special highlight is the innovative ’cablepilot‘ carrying handle, which ensures perfect cable routing. The handle swings on both sides, making it easy to carry and hang up the reel. The reel is also equipped with a practical reel brake that prevents the cable from unwinding during transport. It also has the following impressive features:
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- With twist grip for easy reeling
- Protection class: IP44
- In accordance with EN 61316
- Cable length: 30m
- Cable designation: H07RN-F 5G2.5
- Cable quality: Rubber-neoprene
- Cable colour: Black
- Drum diameter: 320mm
- Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical impacts
- Power when rolled up 230V: 1800W
- Power when unwound 230V: 3000W

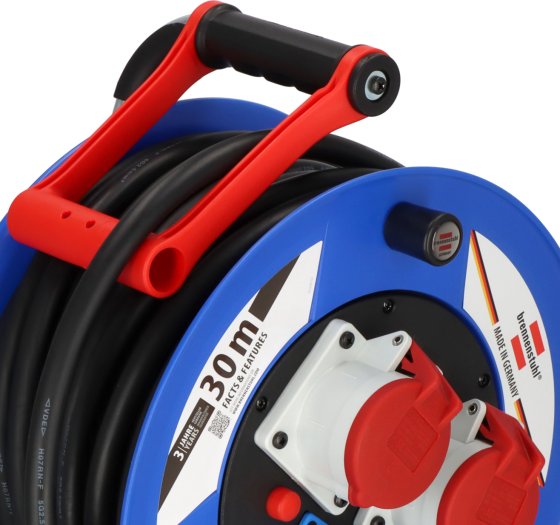

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Industry/ construction sites
- Housing material: Plastic
- With plug storage: Yes

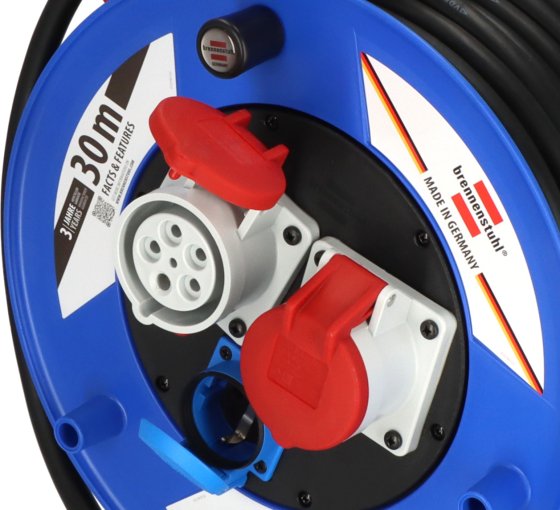

- Number of CEE socket outlets: 2
- Number of earthed socket outlets: 1
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 42 cm
- Length: 24 cm
- Weight: 12,23 kg
- Width: 32 cm
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Scope of delivery
Garant CEE IP44 industrial/construction site cable reel
Загрузки
All products are subject to technical changes
