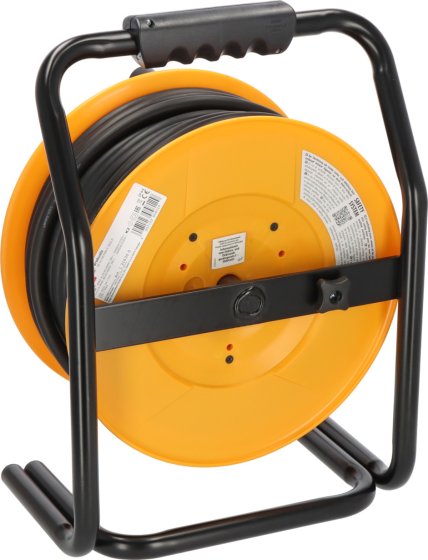

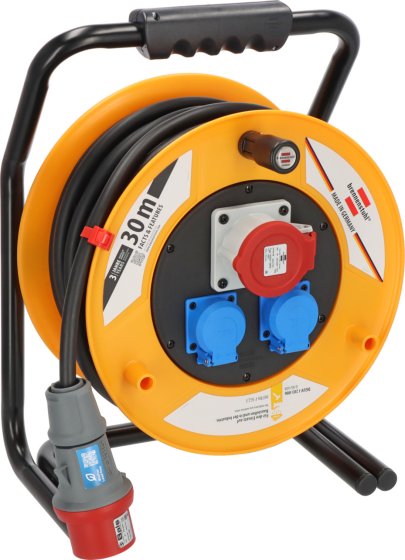

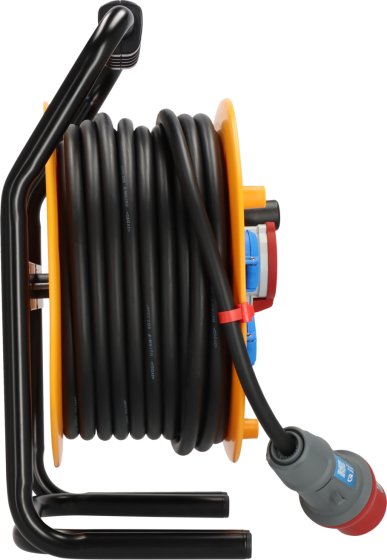

Professional Brobusta CEE 1 IP44 cable reel for site & industry 30m H07RN-F 5G2,5
Описание
Описание
- According to EN 61316.
- Heavy Duty reel, particularly stable, powder-coated frame. Reel body made from highly break-resistant special rubber.
- With hinged rotary handle for comfortable rolling up.
- RN cable is approved to exacting site standards as per VDE 0100 part 704.

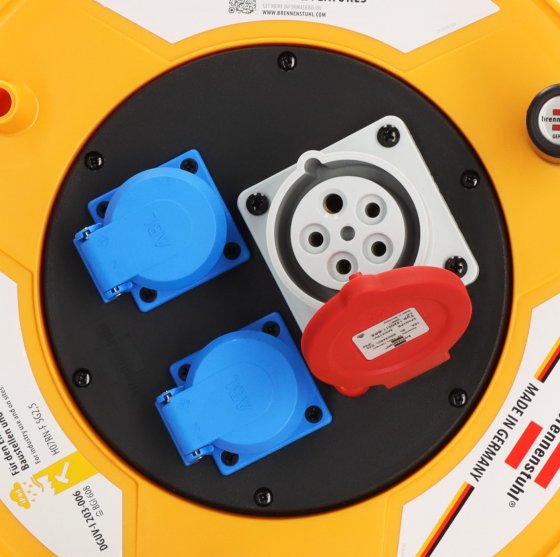

- 1 CEE-plug 400 V/16 A,
- 1 CEE-socket 400 V/16 A,
- 2 water-jet protected sockets 230 V.
- Earthed sockets connected to separate phases.
- With 3-pin safety cut-out and thermal overload protection.
- Category 2 equipment (K2 DGUV 203-005): Used for harsh operating conditions with high mechanical, physical and chemical impacts.
Технические данные
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: No
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 46 cm
- Length: 24 cm
- Weight: 13,25 kg
- Width: 33 cm
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Scope of delivery
Scope of delivery
Professional Brobusta CEE 1 IP44 cable reel for site & industry
Загрузки
Загрузки
All products are subject to technical changes
