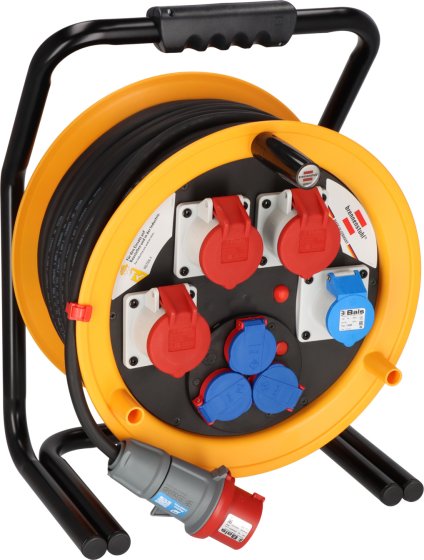

Professional Brobusta CEE 4 building site Cable Reel for permanent outdoor use IP44 (40m, for building site use, Made in Germany)
Описание
Описание
The Professional Brobusta construction site cable reel with 40m cable length convinces by its quality and safety in all areas. The cable reel is ideal for use on construction sites and permanent outdoor use. The black RN cable is approved for difficult construction conditions according to VDE 0100 part 704. The cable reel for the construction site also convinces with the following features:
- CEE plug 400 V/16 A
- 3 CEE sockets 400 V/16 A
- 1 CEE socket 230 V/16 A
- 3 splash-proof protective contact sockets 230 V
- Cable designation: H07RN-F 5G2.5
- Drum diameter: 380 mm
- Protection class (IP): IP44
Технические данные
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 40 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 380 mm
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: No
- Number of CEE socket outlets: 4
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 52 cm
- Length: 28,40 cm
- Weight: 18 kg
- Width: 38,80 cm
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Scope of delivery
Scope of delivery
Professional Brobusta CEE 4 IP44 commercial/construction site cable reel
Загрузки
Загрузки
All products are subject to technical changes
