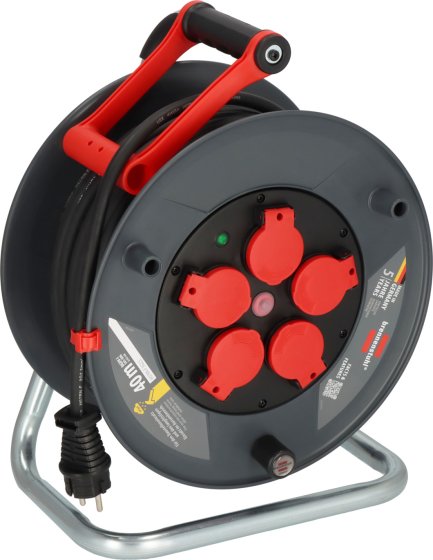

Professional Cable Reel 320 KU 4200 (40m cable in black, made of special plastic, construction site use and permanent outdoor use, Made in Germany)

новинка

Номер артикула 9232400100

Европейский товарный код 4007123687725

The Cable Reel with 40m cable length is equipped with a (H07RN-F 3G2,5) RN cable, approved for difficult building conditions in accordance with VDE 0100 Part 704 - the RN cable is very robust, oil-resistant and particularly suitable for professional use

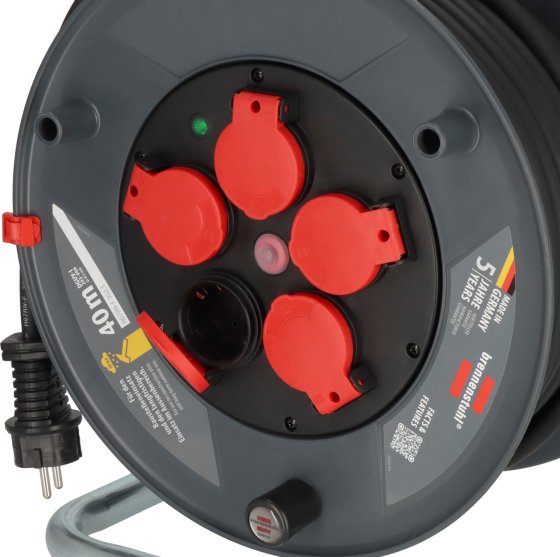

The outdoor Extension Reel has 5 splash-proof earthed sockets with self-closing lids, overheating protection, an indicator light for overheating and overloading and a visual readiness indicator in the socket insert

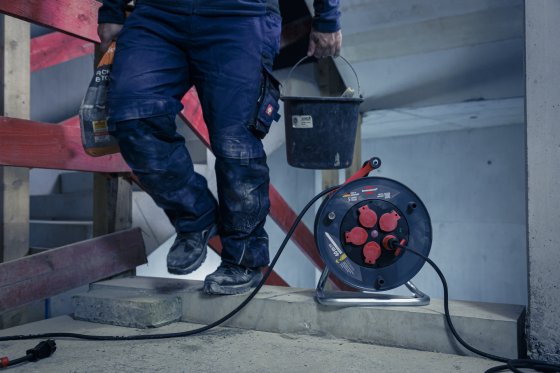

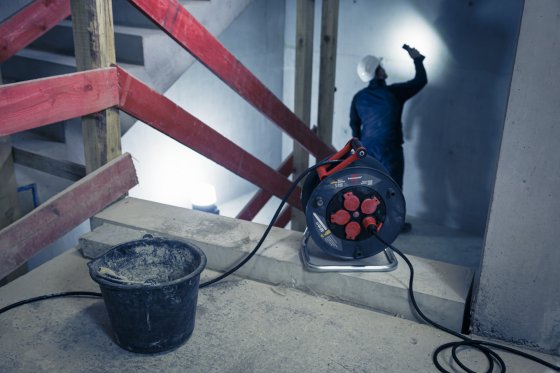

Cable Reel with a reel body made of special plastic on a galvanised support frame - for use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and for permanent outdoor use

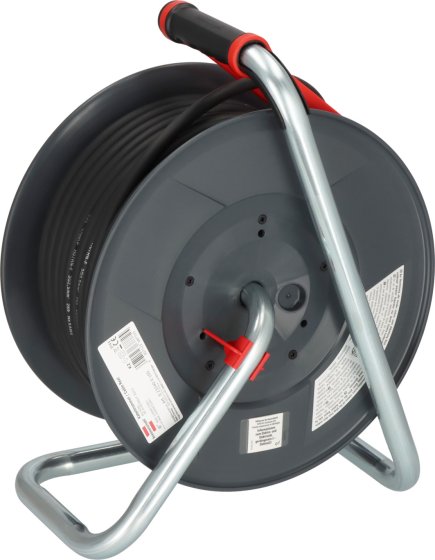

Extension Lead 40m with drum brake on the back so that the reel can be locked and the cable no longer unwinds unintentionally - makes transport easier
The Cable Reel is equipped with the innovative "cablepilot" carrying handle, which allows free hands during transport, practical hanging and quick unwinding and rewinding

Номер артикула 9232400100

Европейский товарный код 4007123687725

25 m
40 m

Описание

The Professional IP44 Cable Reel 320 KU 4200 with 40m cable length is ideal for use on construction sites and outdoors. The Cable Reel with 5 splash-proof protective contact sockets has overheating protection, indicator light in case of overheating and overload and a visual readiness indicator in the socket insert. The Cable Reel is equipped with the innovative "cablepilot" carrying handle, which allows free hands during transport, practical hanging and quick unwinding and rewinding. It also impresses with the following features:

RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
With twist handle for easy retraction
With drum brake

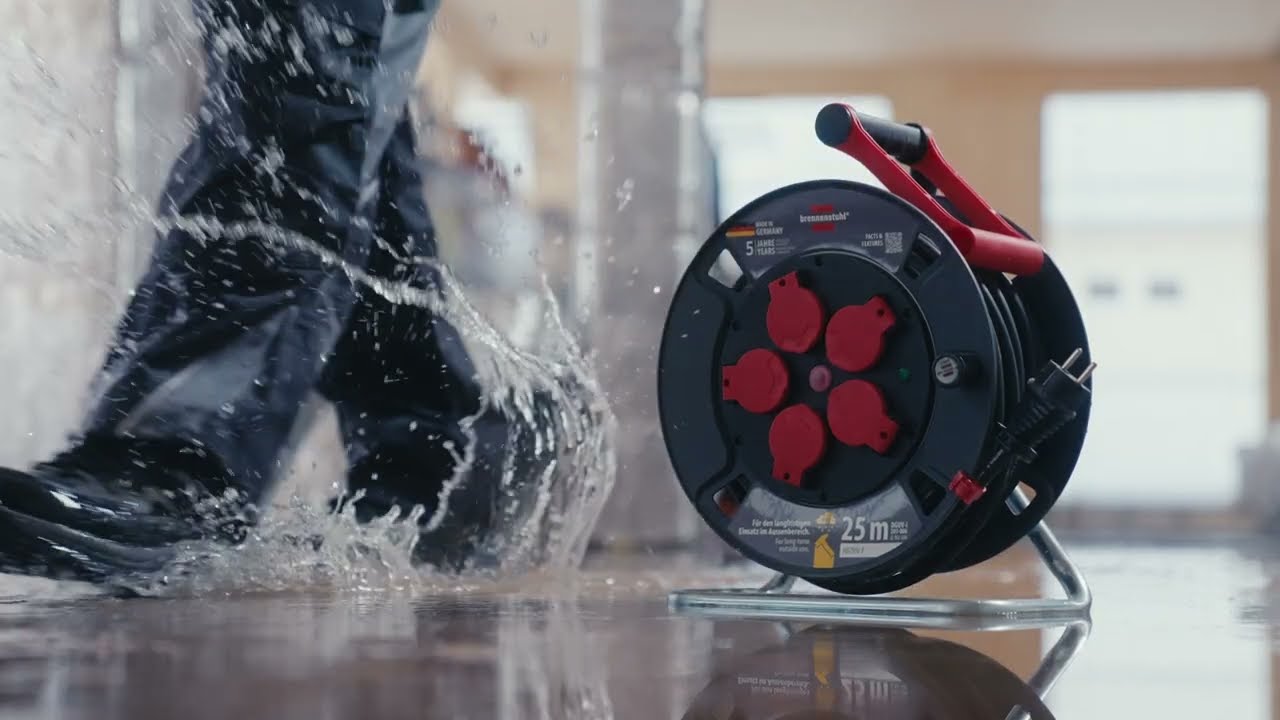

Protection class: IP44
Cable length: 40m
Cable designation: H07RN-F 3G2,5
Cable quality: Rubber-neoprene
Cable colour: Black
Reel diameter: 320mm
Power when wound up 230V: 1300W
Power when unwound 230V: 3300W

Cablepilot

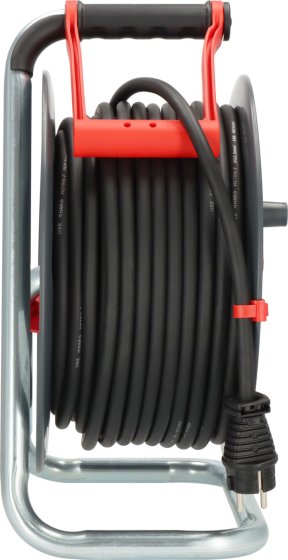

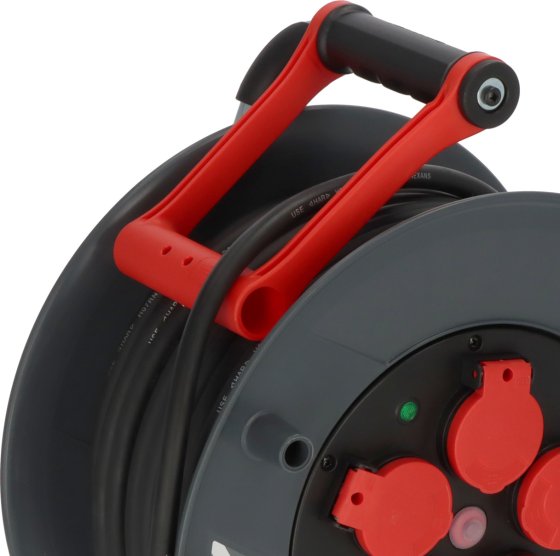

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:

Prevents the cable from slipping off the cable reel
Guides the cable onto the drum during rewinding
Ensures even distribution of the cable on the reel
Practical carrying handle that can also be used to hang up the cable reel
Can be rolled up from both sides
Plug garage for storing the plug

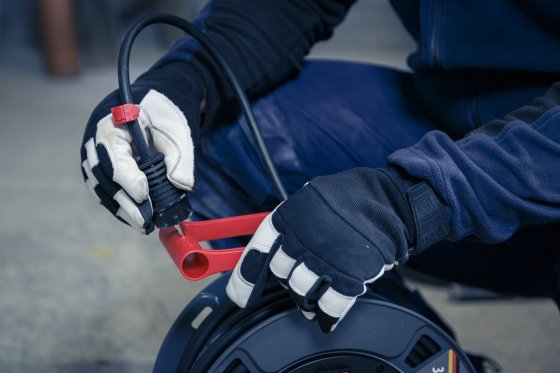

An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.

Технические данные
