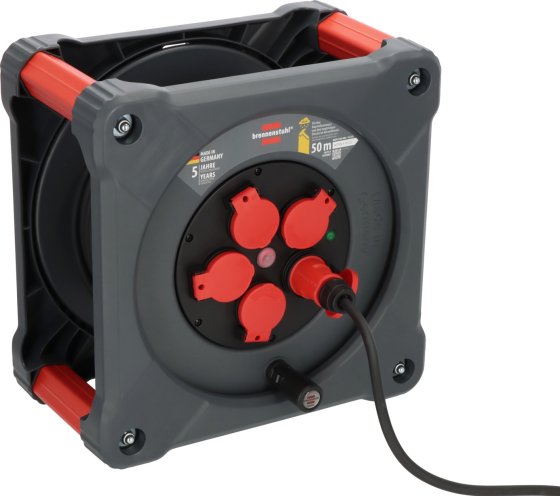

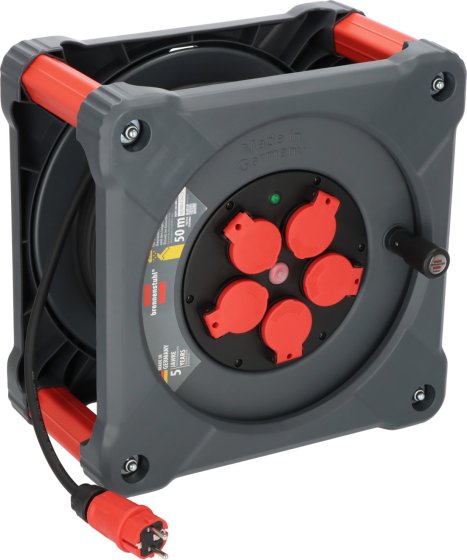

Professional cable reel KA 5100 5 IP44 with all-round roll-over protection (50m H07RN-F 3G1.5 cable, construction site use and permanent outdoor use, 5 protective contact sockets, Made in Germany)
Описание
The Professional 50m cable reel with a housing and reel material made of a plastic-rubber mix is extremely shock and impact resistant. Thanks to the IP44 protection rating and the extremely robust and oil-resistant RN cable, it is also suitable for long-term use in the toughest outdoor conditions. Thanks to the all-round roll-over protection, the cable reel is stable on all four sides and also offers perfect cable routing on all four sides. The extension cable reel with 5 splash-proof protective contact sockets has overheating protection with an indicator light for overheating and overloading and a visual readiness indicator in the socket insert. The professional cable reel with carrying handles and plug garage on all four sides also impresses with the following features:
- Large, sturdy folding swivel handle for effortless winding and unwinding of the cable
- Reel body cold impact resistant down to -25 °C
- With drum brake
- Protection class: IP44
- Cable length: 50m
- Cable designation: H07RN-F 3G1.5
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- Cable colour: black
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
- Power when wound up 230V: 1000W
- Power when unwound 230V: 3000W
Технические данные
- Cable designation: H07RN-F 3G1,5
- Cable length: 50 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 0
- Number of earthed socket outlets: 5
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 22 cm
- Weight: 10,33 kg
- Width: 37 cm
- Additional cable length: 0 m
Scope of delivery
Professional construction site cable reel KA 5100 5
