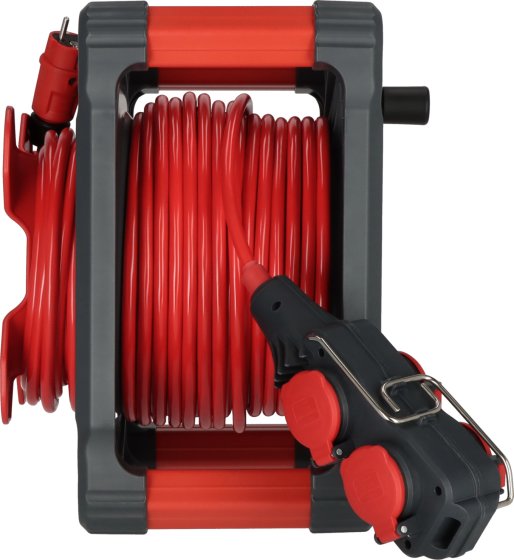

Professional cable reel with all-round roll-over protection and 4-way distributor KC 3210 5 (33+5m H07BQ-F3G2.5 cable, construction site use and permanent outdoor use, 5 protective contact sockets, Made in Germany)
Описание

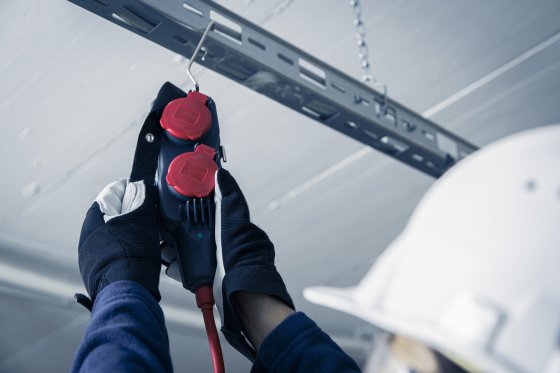

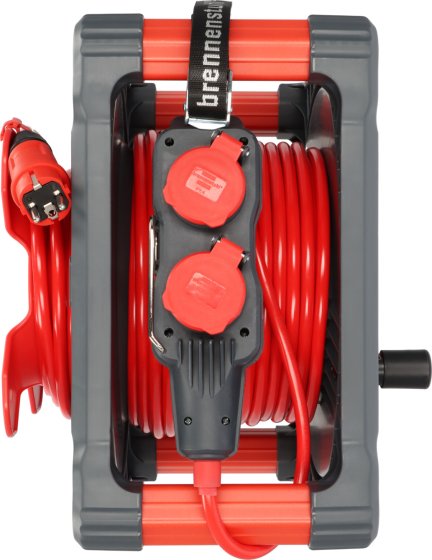

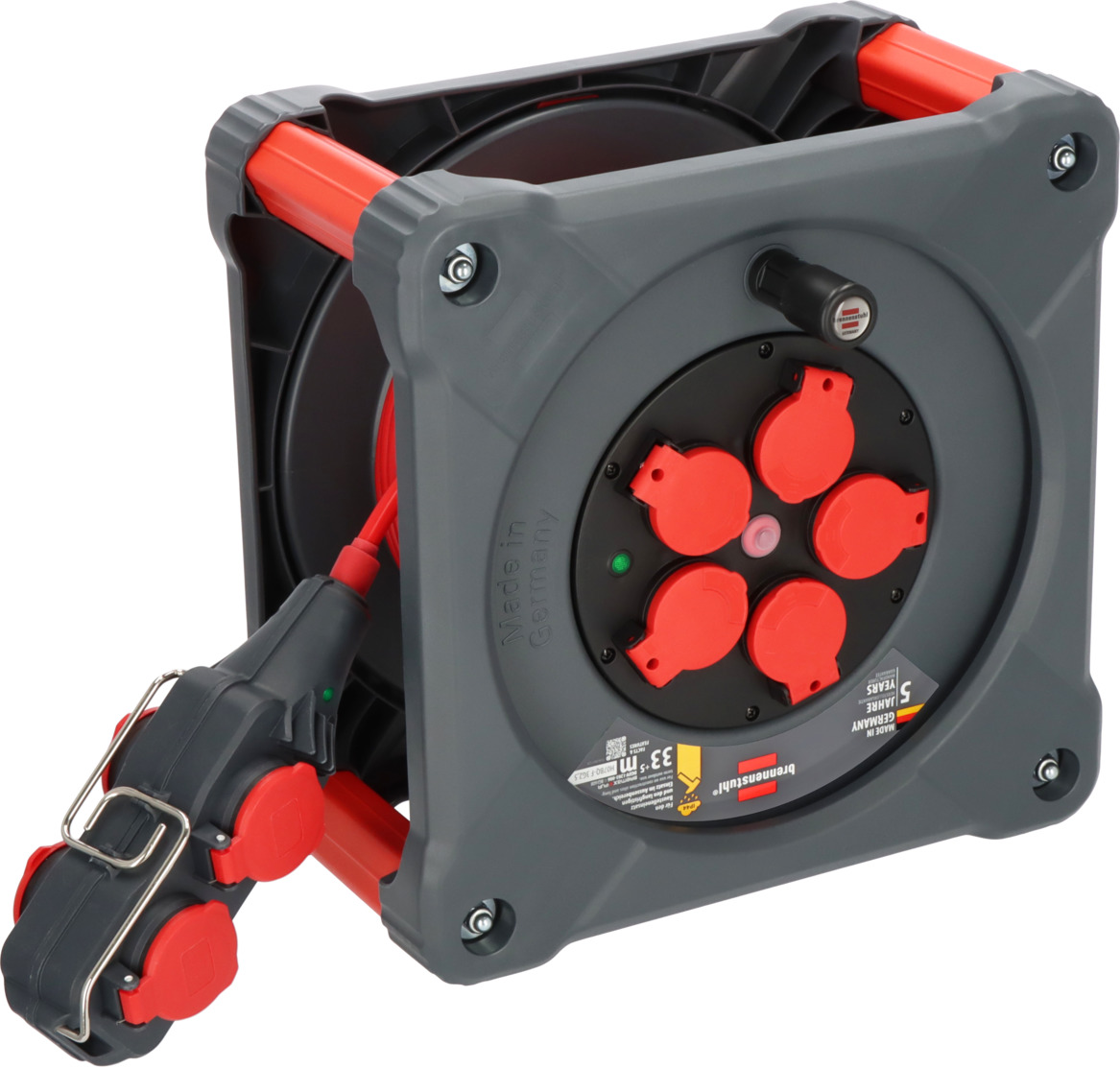

The Professional 33m cable reel with a housing and reel material made of a plastic-rubber mix is extremely shock and impact resistant. Thanks to the IP44 protection rating and the extremely abrasion-resistant and roll-over resistant BQ cable, it is also suitable for long-term use in the toughest outdoor conditions. The extension cable reel with 5 protective contact sockets (splash-proof, with self-closing lids) and extra robust protective contact plug is extremely stable on all four sides thanks to all-round roll-over protection. Thanks to the mobile power block, it is also ideal for handy use on scaffolding or on roofs. The 4-way distributor has a visual readiness indicator, a hinged metal suspension hook and a strap. The cable reel also impresses with the following features:
- Large, sturdy folding swivel handle for effortless winding and unwinding of the cable
- Robust carrying handles and plug garage on all four sides
- Reel body cold impact resistant down to -25 °C
- With drum brake
- BQ cable: acid- and oil-resistant, weather- and microbe-resistant and cold-resistant down to -40 °C
- Overheating protection with indicator light for overheating and overloading

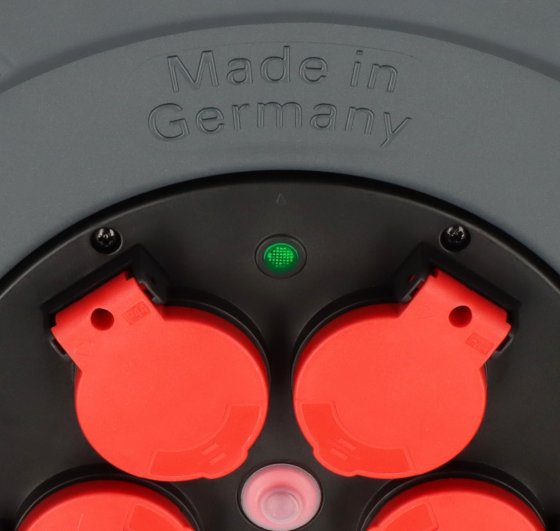

- With visual readiness indicator in the socket insert
- Protection class: IP44
- Cable length: 33+5 m
- Cable designation: H07BQ-F3G2.5
- Cable colour: red
- Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical influences
- Power when rolled up 230V: 1000W
- Power when unwound 230V: 3300W
Технические данные
- Cable designation: H07BQ-F 3G2,5
- Cable length: 33 m
- Cable quality: PUR (polyurethane), PUR (polyurethane)
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 0
- Number of earthed socket outlets: 5
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 29 cm
- Weight: 8,94 kg
- Width: 37 cm
- Additional cable length: 5 m
Scope of delivery
Professional Construction site cable reel with Powerblock KC 3210 5
