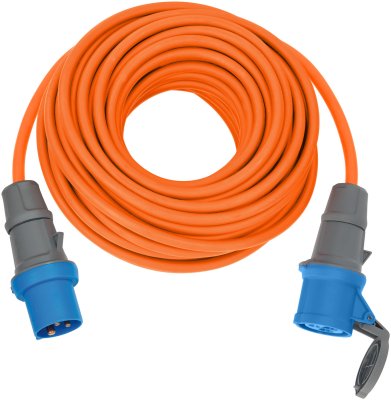

CEE camping Extension Lead 25m cable in orange (CEE plug and angled coupling incl. earth contact combination socket, 230V/16A, for long-term outdoor use, Made in Germany)
Описание

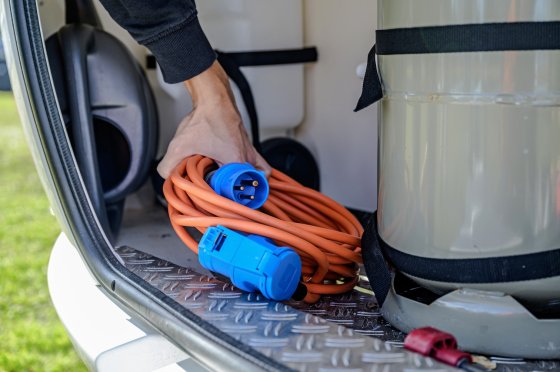

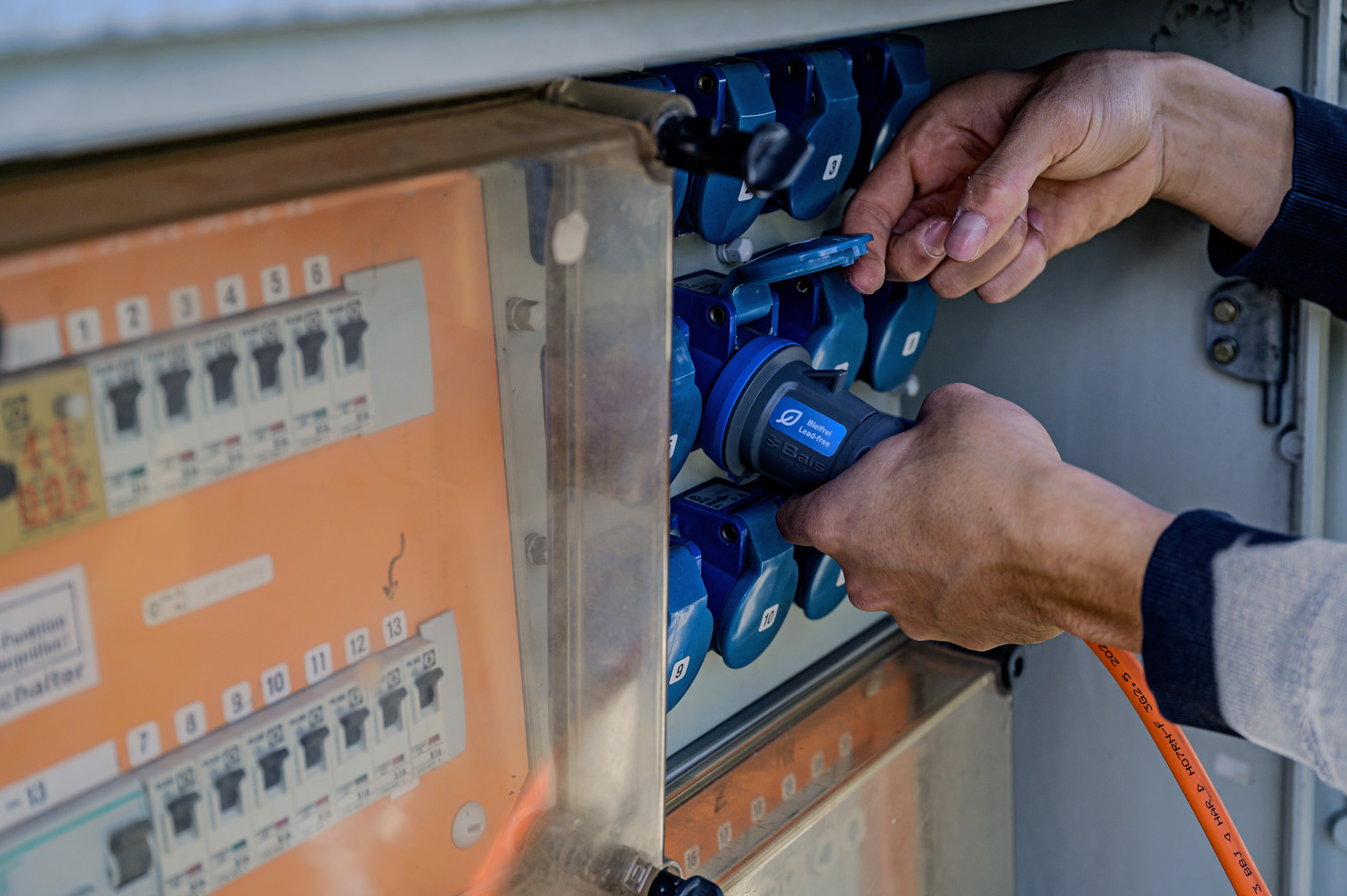

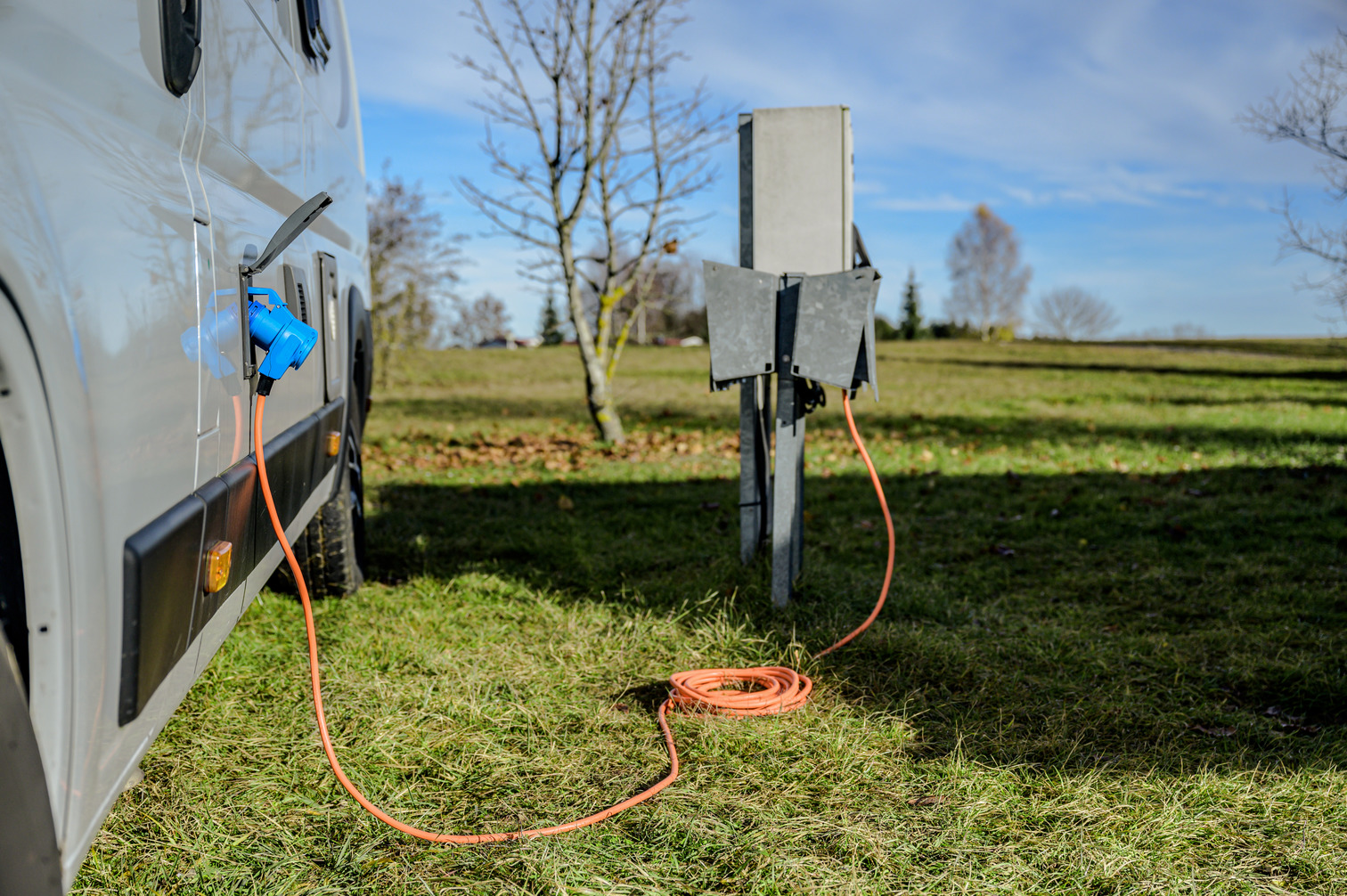

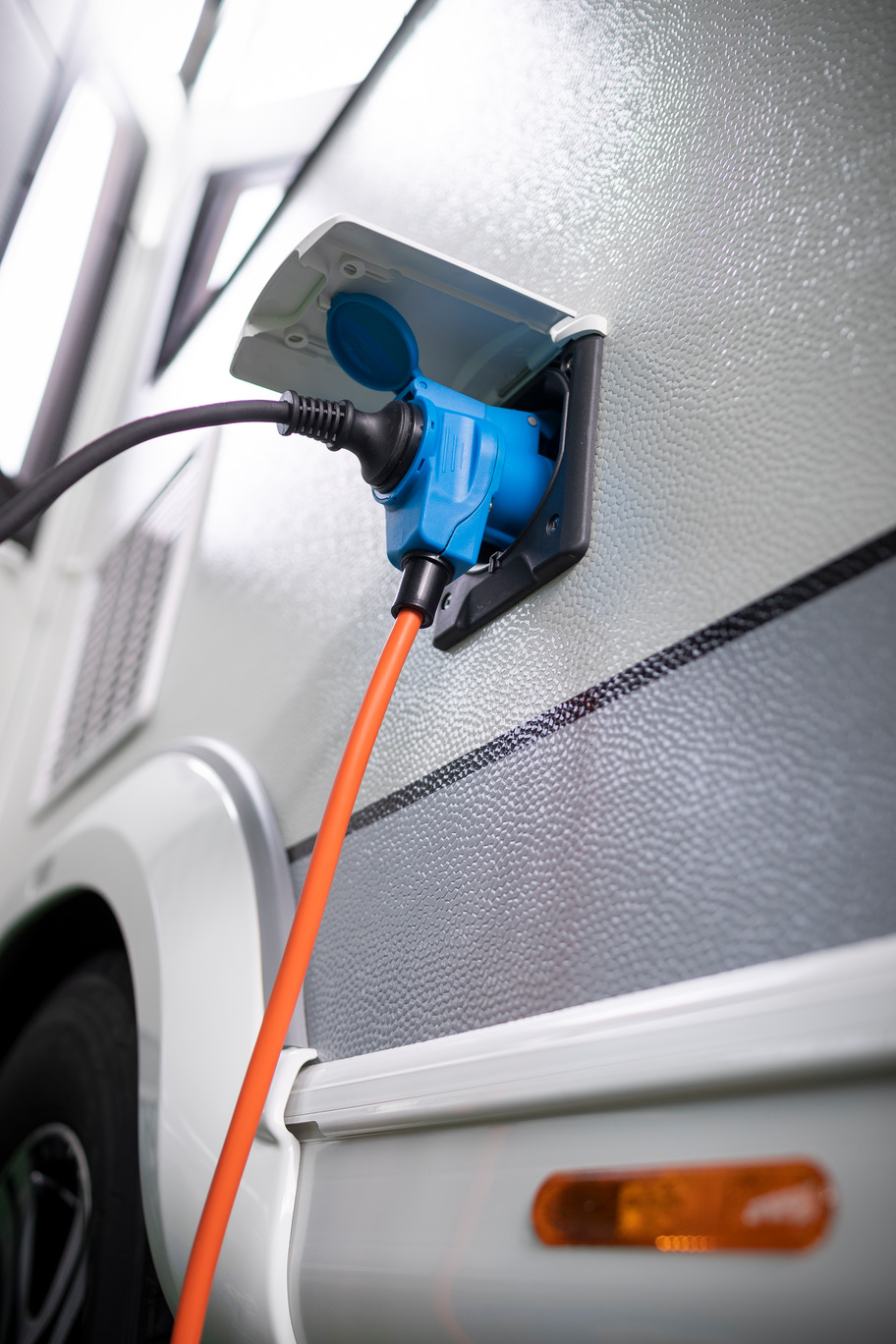

The CEE Extension Cable from Brennenstuhl has a CEE plug and angled coupling including a earth contact combination socket. Thanks to the IP44 protection class and the oil-resistant RN cable, the cable is ideally suited for permanent outdoor use, such as for caravans, motor homes, camping or even on boats. The caravan cable with has the signal colour orange for extra safety. It is not only extremely robust, but also convinces with the following features:
- Cable length: 25m
- Cable designation: H07RN-F 3G2.5
- Cable quality: rubber-neoprene

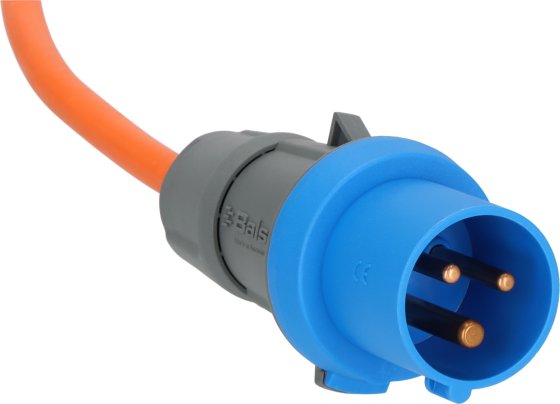

- Plug system plug: CEE 230V/16A

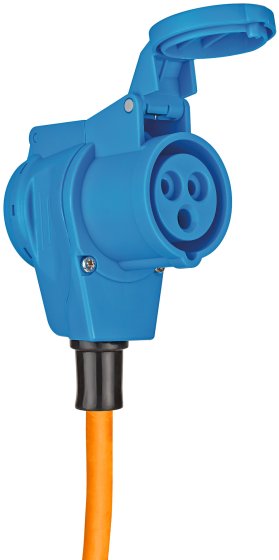

- Connection: CEE angle coupling, earthing contact plug
- Made in Germany
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
- The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
- The orange signal colour makes you and people in the vicinity aware of cables lying around and potential tripping hazards.
Технические данные
- Cable designation: H07RN-F 3G2,5
- Cable length: 25 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- With residual current circuit breaker (RCCB): No
- Oil-resistant: Yes
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Height: 13 cm
- Length: 27 cm
- Weight: 5,54 kg
- Width: 27 cm
Scope of delivery
CEE Extension Cable IP44 For Camping/Maritim
Загрузки
Принадлежности
All products are subject to technical changes
